Weld Neck Raised Face (WNRF)
ANSI B16.5 Class 150, 300, 600, 900 Weld Neck Flanges Manufacturers, ASME B16.47 Series A and B Weld Neck Raised Face (WNRF) Flange Suppliers in Mumbai, India.

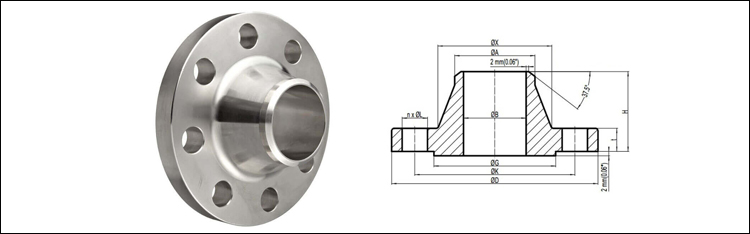

Kencotube is well known manufacturing house of Weld neck raised face flanges (WNRF), which is one of the most commonly used flange in the piping industry. Stainless Steel Weld neck raised face flanges are easy to recognize with their long tapered hub that is matched to the wall thickness (bore) of the pipe. These Carbon Steel Weld neck raised face flanges are attached by welding the pipe to the neck of the flange, where this transfers stress from the flange to the pipe instead. Alloy Steel Weld neck raised face flanges also reduce the stress concentration from the base of the hub, where bore is machined to match the ID of the pipe or fitting. Alloy 20 Weld neck raised face flanges creates a smooth transition to and from the weld neck flange and prevents turbulence at the welding neck.
Carbon Steel A105 WNRF Flanges, Alloy Steel Weld Neck Raised Face Flange Dealers, Duplex Steel Weld Neck Flanges, Copper Nickel WNRF Flanges, Super Duplex Steel Weld Neck Raised Face Flanges, High Quality Weld Neck Raised Face Flanges Exporters, ASTM A182 Stainless Steel Weld Neck Raised Face Flanges, Manufacturers and Suppliers of Weld Neck Flanges in Various types of Material Grades.
| Standard | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| BS | BS4504 , BS4504, BS1560, BS10 |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
| Pressure Ratings | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Raised Face Weld Neck Flange Material and Grades
Stainless Steel Weld Neck Raised Face Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Duplex and Super Duplex Steel Weld Neck Raised Face Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Weld Neck Raised Face Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Alloy Steel Weld Neck Raised Face Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Nickel Alloy Weld Neck Raised Face Flanges : ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).
Copper Alloy Weld Neck Raised Face Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200.
Low Temperature Carbon Steel Weld Neck Raised Face Flanges : ASTM A350, LF2, LF3
